Thermotrace Self Regulating Tracer – STP

Thermotrace Self Regulating Tracer – STP is an ideal solution for high temperature applications in tanks. Equipped with self-regulating technology, this tracer can adjust its heat output based on the surrounding temperature, ensuring that the contents in the tanks are maintained within a desired range. Thermotrace Self Regulating Tracer is ideally suited for high temperature applications for Tanks & pipelines. Thermotrace Self Regulating Tracer is suitable for maintaining temperature up to 150 Deg.C. These Tracers allow steam cleaning of the pipelines.
With advanced insulation options like Fluoropolymer, this tracer offers excellent thermal performance and can withstand extreme temperatures and harsh environments. It is easy to install and requires minimal maintenance, making it a cost-effective choice for businesses. Whether it’s for heating or temperature maintenance, Thermotrace Self Regulating Tracer – STP provides reliable and efficient performance, ensuring the smooth operation of critical systems in high-temperature applications.

Construction

1. 1.25 Sq.MM Coated Copper Bus wires.
2. Semi conductive heating core extruded over bus wires.
3. Fluoropolymer Jacket providing electrical insulation,mechanical strength & moisture resistance.
4. Coated copper braid to give a continuous ground path.
5. Outer jacket UV resistant Fluoropolymer to enable usage in corrosive areas & high temperatures.

Features
Compliance	Standards: EN 60079 – 0, IS/ IEC / EN 60079 – 30 – 1 & EN 60079 – 31
Approvals	Tested by Central Institute of Mining and Fuel Research (CSIR-CIMFR), Dhanbad and approved by Petroleum and Explosives Safety Organization ( PESO), Nagpur, India for Zone II , TI (ATEX) for Zone I / Division II & EAC for use in hazardous area applications
Safety	As the Cable self regulates its heat output, its limit the maximum sheath temperature, thus making it burnout proof

Specifications
Catalogue Reference	STP15	STP30	STP45	STP60
Heating Power W/m (230V AC) at 10^oC	15	30	45	60
Voltage Supply	230/240 VAC, 50/60 Hz, 110/120VAC on request
Max. Operating Temperature	150⁰C
Max. Exposure Temperature	250⁰C
Min. Installation Temperature	– 65⁰C
Minimum Bending Radius	25 mm

# Thermopads reserves the right to modify the specifications in line with future improvements, updated standards or updated certifications

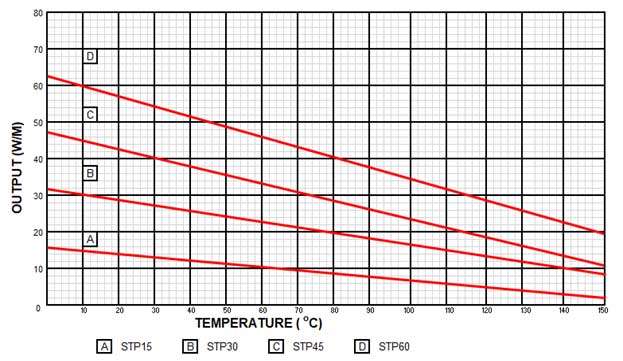

STP Power Output Characteristics

Circuit Breaker Selection and Maximum Circuit Lengths

Catalog Number	Output at 10 deg C	Max. Circuit Length	Circuit Breaker Size	Max. Maintenance Temperature	Max. Exposure Temperature
STP-15	15 W/m	117	16A	150⁰C	250⁰C
		152	20A	150⁰C	250⁰C
		185	25A	150⁰C	250⁰C
STP-30	30 W/m	68	16A	150⁰C	250⁰C
		91	20A	150⁰C	250⁰C
		114	25A	150⁰C	250⁰C
STP-45	45 W/m	48	16A	150⁰C	250⁰C
		65	20A	150⁰C	250⁰C
		82	25A	150⁰C	250⁰C
STP-60	60 W/m	38	16A	150⁰C	250⁰C
		51	20A	150⁰C	250⁰C
		64	25A	150⁰C	250⁰C
